electrons_measured_approx

optika.sensors.electrons_measured_approx(photons_absorbed, wavelength, absorption=None, thickness_implant=<Quantity 2317. Angstrom>, cce_backsurface=0.21, temperature=<Quantity 300. K>, iqy=None, fano_factor=None, shape_random=None)

A random sample from an approximate distribution of measured electrons given the number of photons absorbed by the light-sensitive layer of the sensor.

This function accounts for both Fano noise and recombination noise due to partial-charge collection.

Parameters:

• photons_absorbed (Quantity | AbstractScalar) – The number of photons absorbed by the light-sensitive layer of the sensor.

• wavelength (Quantity | ScalarArray) – The vacuum wavelength of the absorbed photons.

• absorption (None | Quantity | AbstractScalar) – The absorption coefficient of the light-sensitive material for the wavelength of interest.

• thickness_implant (Quantity | AbstractScalar) – The thickness of the implant layer. Default is the value given in Stern et al. [1994].

• cce_backsurface (Quantity | AbstractScalar) – The differential charge collection efficiency on the back surface of the sensor. Default is the value given in Stern et al. [1994].

• temperature (Quantity | ScalarArray) – The temperature of the light-sensitive silicon layer.

• iqy (None | Quantity | AbstractScalar) – The ideal quantum yield of the sensor in electrons per photon. If None (the default), the result of quantum_yield_ideal() is used.

• fano_factor (None | Quantity | AbstractScalar) – The Fano factor (ratio of the variance to the mean) of the Fano noise for this sensor material in units of electrons per photon. If None (the default), the result of fano_factor() is used.

• shape_random (None | dict[str, int]) – Additional shape used to specify the number of samples to draw.

Return type:

AbstractScalar

Examples

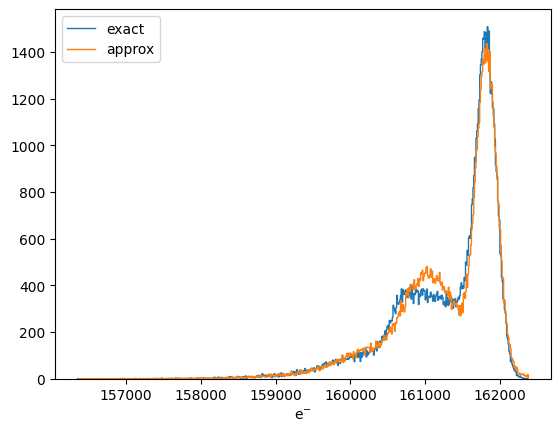

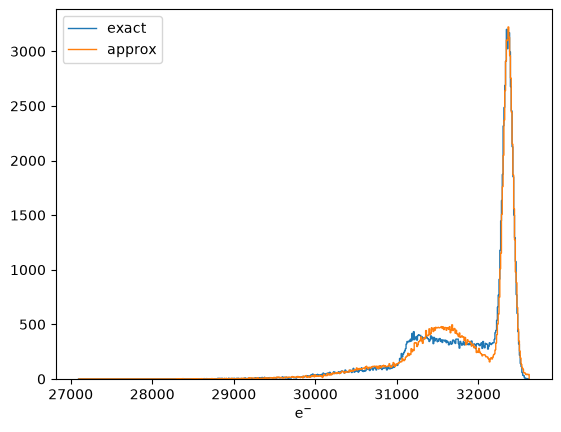

Plot the energy spectrum of 100 6 keV photons emitted from an Fe-55 radioactive source and compare it to the exact spectrum

import matplotlib.pyplot as plt
import astropy.units as u
import astropy.visualization
import named_arrays as na
import optika

# Define the number of experiments to perform
num_experiments = 100000

# Define the expected number of photons
# for each experiment
photons_absorbed = (100 * u.photon).astype(int)

# Define the wavelength at which to sample the distribution
wavelength = 5.9 * u.keV
wavelength = wavelength.to(u.AA, equivalencies=u.spectral())

# Compute the actual number of electrons measured for each experiment
electrons_exact = optika.sensors.electrons_measured(
    photons_absorbed=photons_absorbed,
    wavelength=wavelength,
    shape_random=dict(experiment=num_experiments),
)

# Compute the approximate number of electrons measured for each experiment
electrons_approx = optika.sensors.electrons_measured_approx(
    photons_absorbed=photons_absorbed,
    wavelength=wavelength,
    shape_random=dict(experiment=num_experiments),
)

# Define the histogram bins
step = 10
bins = na.arange(
    electrons_exact.value.min()-step/2,
    electrons_exact.value.max()+step/2,
    step=step,
    axis="bin",
) * u.electron

# Compute a histogram of exact energy spectrum
hist_exact = na.histogram(
    electrons_exact,
    bins=bins,
    axis="experiment",
)

# Compute a histogram of approximate energy spectrum
hist_approx = na.histogram(
    electrons_approx,
    bins=bins,
    axis="experiment",
)

# Plot the histogram
with astropy.visualization.quantity_support():
    fig, ax = plt.subplots()
    na.plt.stairs(
        hist_exact.inputs,
        hist_exact.outputs,
        ax=ax,
        label="exact",
    );
    na.plt.stairs(
        hist_approx.inputs,
        hist_approx.outputs,
        ax=ax,
        label="approx",
    );
    ax.legend();
