CircularSectorAperture#

class optika.apertures.CircularSectorAperture(radius=<Quantity 0. mm>, angle_start=<Quantity 0. deg>, angle_stop=<Quantity 180. deg>, *, samples_wire=101, active=True, inverted=False, transformation=None, kwargs_plot=None)[source]#

Bases: AbstractAperture

A circular sector aperture.

Examples

Plot a single circular aperture sector

import matplotlib.pyplot as plt
import astropy.units as u
import astropy.visualization
import named_arrays as na
import optika

# Define a circular aperture sector
aperture = optika.apertures.CircularSectorAperture(
    radius=50 * u.mm,
    angle_start=-11 * u.deg,
    angle_stop=40 * u.deg,
)

# Define points to sample the aperture with
points = na.Cartesian3dVectorLinearSpace(
    start=aperture.bound_lower,
    stop=aperture.bound_upper,
    axis=na.Cartesian3dVectorArray("x", "y", "z"),
    num=na.Cartesian3dVectorArray(11, 11, 1),
)

# Compute which points are inside the aperture
where = aperture(points)

# Plot the circular aperture sector
with astropy.visualization.quantity_support():
    plt.figure()
    plt.gca().set_aspect("equal")
    aperture.plot(components=("x", "y"), color="black")
    na.plt.scatter(
        points.x,
        points.y,
        c=where.astype(float)
    )

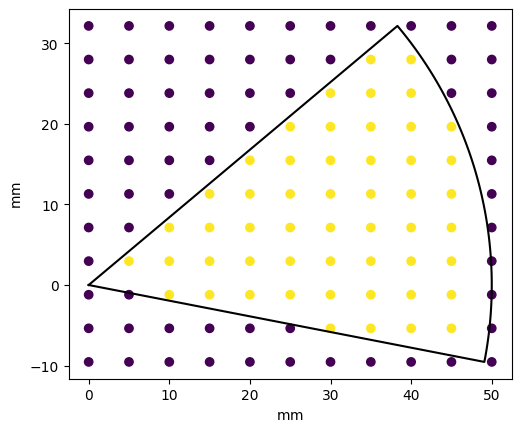

../_images/optika.apertures.CircularSectorAperture_0_0.png

Attributes

`active`	Whether the aperture is active and can clip rays.
`angle_start`	The starting angle of the circular sector.
`angle_stop`	The ending angle of the circular sector.
`bound_lower`	The lower-left corner of the aperture's rectangular footprint
`bound_upper`	The upper-right corner of the aperture's rectangular footprint
`inverted`	Whether this object is being used as an aperture or obscuration.
`kwargs_plot`	Extra keyword arguments that will be used in the call to `named_arrays.plt.plot()` within the `plot()` method.
`radius`	The radius of the cirucular sector.
`samples_wire`	The default number of samples used for `wire()`.
`shape`	The array shape of this object.
`transformation`	The transformation between the local surface coordinates and the aperture.
`vertices`	The vertices of the polygon representing this aperture

Methods

`__init__`([radius, angle_start, angle_stop, ...])
`clip_rays`(rays)	Given a set of input rays, update the `unvignetted` to be `False` if the ray is blocked by the aperture.
`plot`([ax, transformation, components, sag])	Plot the selected components onto the given axes.
`to_dxf`(file, unit[, transformation])
`to_string`([prefix])	Public-facing version of the `__repr__` method that allows for defining a prefix string, which can be used to calculate how much whitespace to add to the beginning of each line of the result.
`wire`([num])	The sequence of points representing this aperture

Inheritance Diagram

Parameters:

radius (Quantity | AbstractScalar)
angle_start (Quantity | AbstractScalar)
angle_stop (Quantity | AbstractScalar)
samples_wire (int)
active (bool | AbstractScalar)
inverted (bool | AbstractScalar)
transformation (None | AbstractTransformation)
kwargs_plot (None | dict)

clip_rays(rays)#

Given a set of input rays, update the unvignetted to be False if the ray is blocked by the aperture.

Parameters:: rays (RayVectorArray) – The input rays to clip.

plot(ax=None, transformation=None, components=None, sag=None, **kwargs)#

Plot the selected components onto the given axes.

Parameters:

ax (None | Axes | ScalarArray[ndarray[tuple[Any, ...], dtype[_ScalarT]]]) – The matplotlib axes to plot onto
transformation (None | AbstractTransformation) – Any extra transformations to apply to the coordinate system before plotting
components (None | tuple[str, ...]) – Which 3d components to plot, helpful if plotting in 2d.
kwargs – Additional keyword arguments that will be passed along to named_arrays.plt.plot()
sag (None | AbstractSag)

Return type:

None | ScalarArray[ndarray[tuple[Any, …], dtype[None | Line2D]]]

to_dxf(file, unit, transformation=None)#

Parameters:

file (Path)
unit (Unit)
transformation (None | AbstractTransformation)

to_string(prefix=None)#

Public-facing version of the __repr__ method that allows for defining a prefix string, which can be used to calculate how much whitespace to add to the beginning of each line of the result.

Parameters:: prefix (None | str) – an optional string, the length of which is used to calculate how much whitespace to add to the result.
Return type:: str

wire(num=None)[source]#

The sequence of points representing this aperture

Parameters:: num (None | int) – The total number of samples that will be used to represent this wire.
Return type:: Cartesian3dVectorArray

active: bool | AbstractScalar = True#: Whether the aperture is active and can clip rays.

angle_start: Quantity | AbstractScalar = <Quantity 0. deg>#: The starting angle of the circular sector. Must be between \(-2 \pi\) and \(+2 \pi\) radians.

angle_stop: Quantity | AbstractScalar = <Quantity 180. deg>#: The ending angle of the circular sector. Must be between \(-2 \pi\) and \(+2 \pi\) radians and counterclockwise from angle_start.

property bound_lower: Cartesian3dVectorArray#: The lower-left corner of the aperture’s rectangular footprint

property bound_upper: Cartesian3dVectorArray#: The upper-right corner of the aperture’s rectangular footprint

inverted: bool | AbstractScalar = False#

Whether this object is being used as an aperture or obscuration.

If True, the interior of the aperture allows light to passthrough. If False, the exterior of the aperture allows light to pass through.

kwargs_plot: None | dict = None#: Extra keyword arguments that will be used in the call to named_arrays.plt.plot() within the plot() method.

radius: Quantity | AbstractScalar = <Quantity 0. mm>#: The radius of the cirucular sector.

samples_wire: int = 101#: The default number of samples used for wire().

property shape: dict[str, int]#: The array shape of this object.

transformation: None | AbstractTransformation = None#: The transformation between the local surface coordinates and the aperture.

property vertices: None#: The vertices of the polygon representing this aperture
